Cable Catch System

Existing windows on building facades are vulnerable to the effects of blasts generated by nearby explosive devices. Under the blast loads, the windows brake and glass fragments and window frame debris are thrown into the building, causing injuries to the inhabitants.

G.G Defense System's unique Retrofit Cable Catcher System for windows enables the protection of existing windows in buildings against the highest blast hazards instigated by terrorist activities.

The G.G. Retrofit Cable Catch System can catch the window as it moves inward under the blast effect and prevent glass fragments and window frame debris from flying into the building.

The unique system comprises Energy Absorbing Modules – that enable the systems to absorb the highest amount of energy transferred to windows in blast attacks by controlled plastic deformation.

The quick installation behind existing windows ensures a high level of protection for the inhabitants of the building.

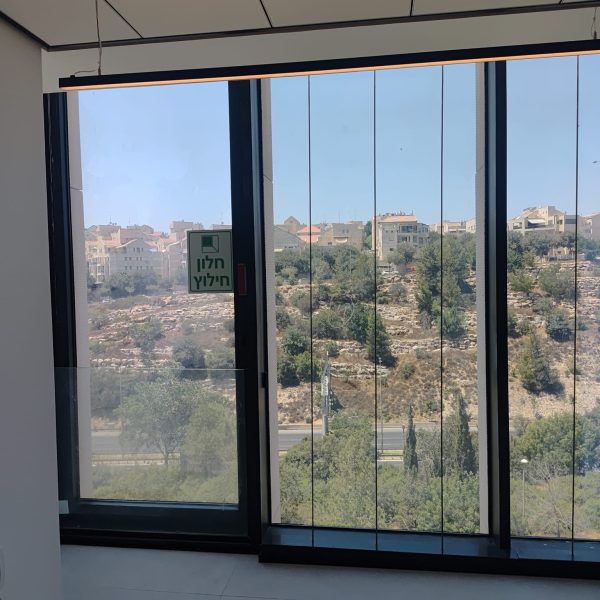

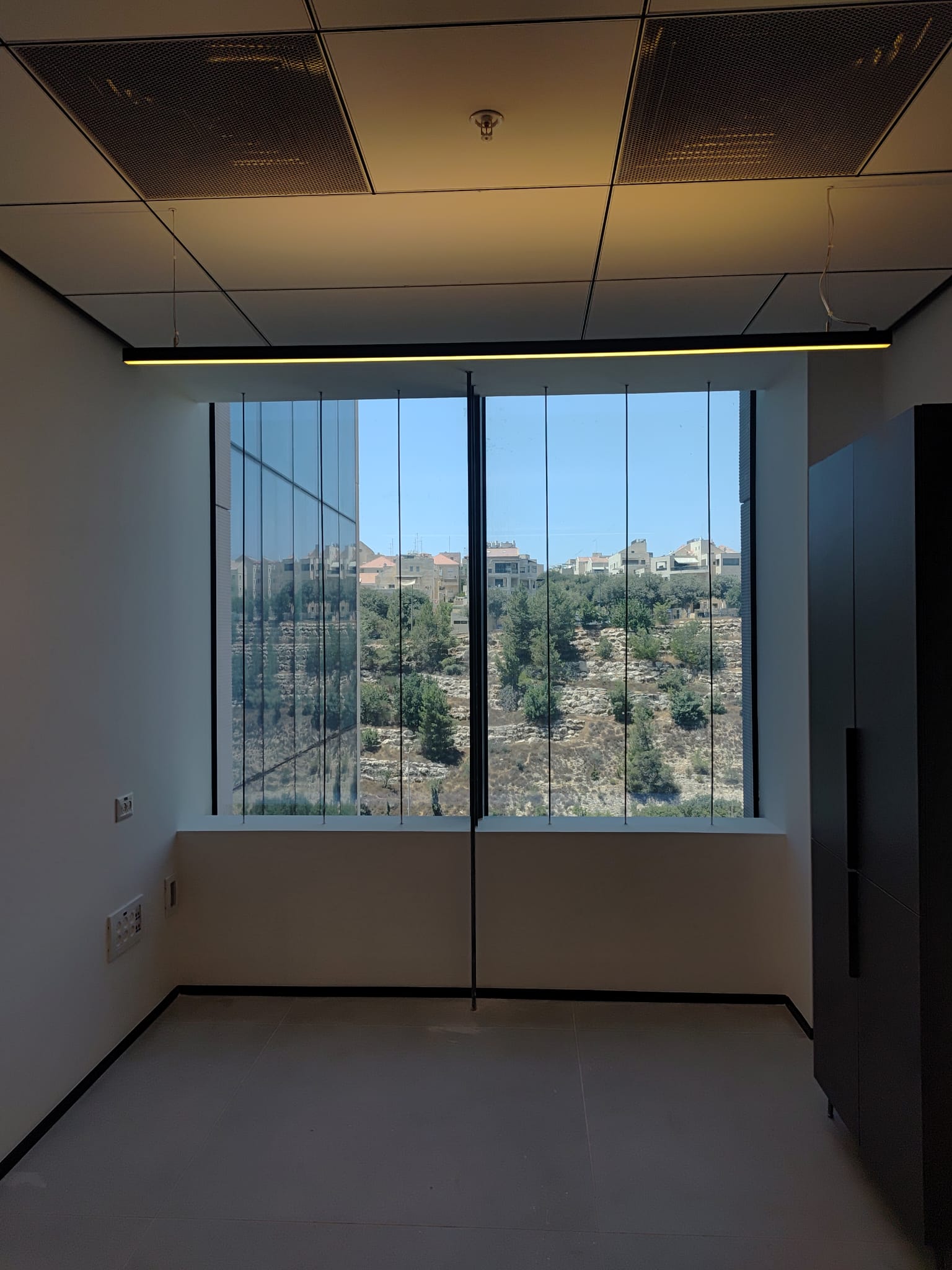

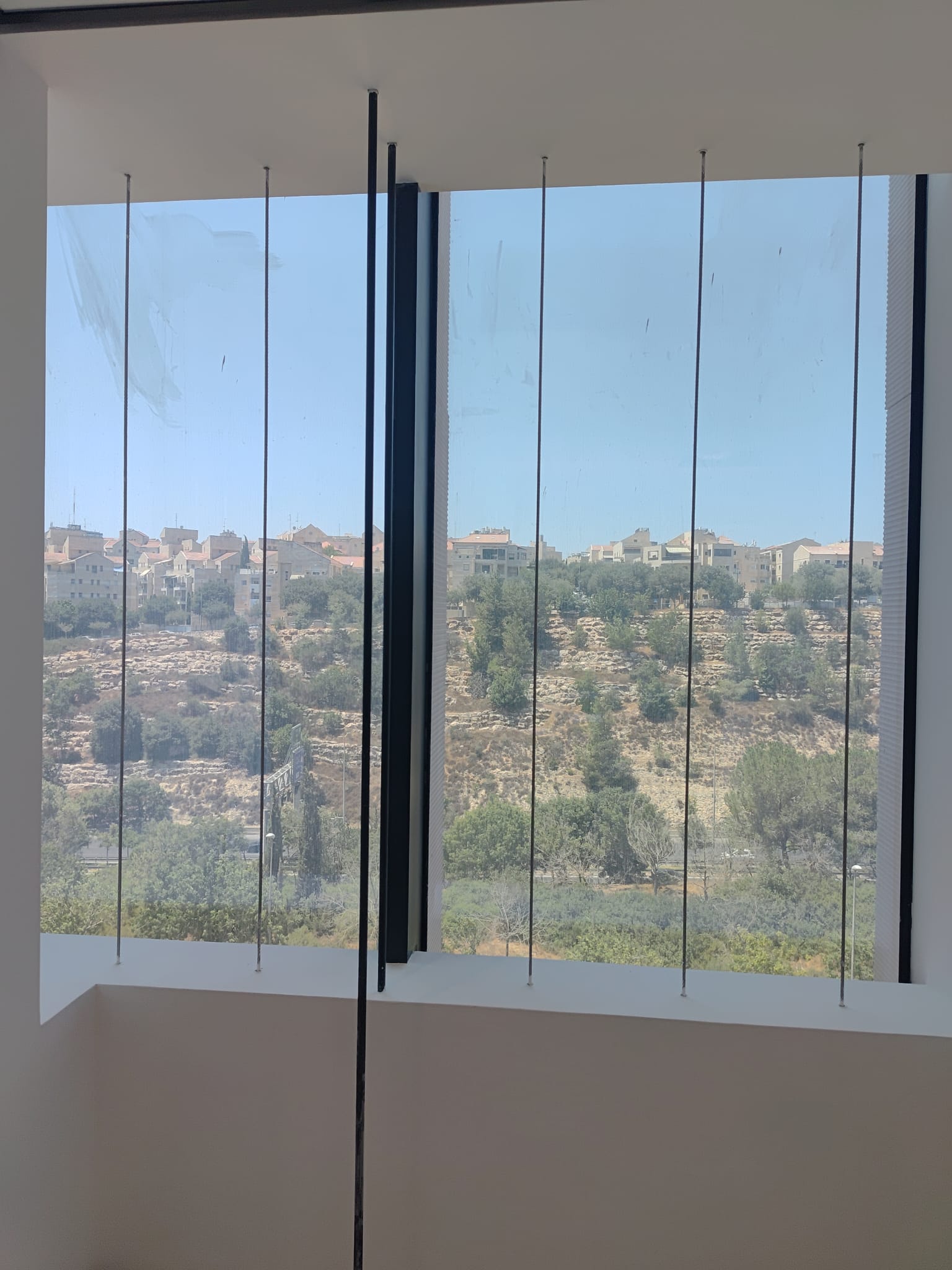

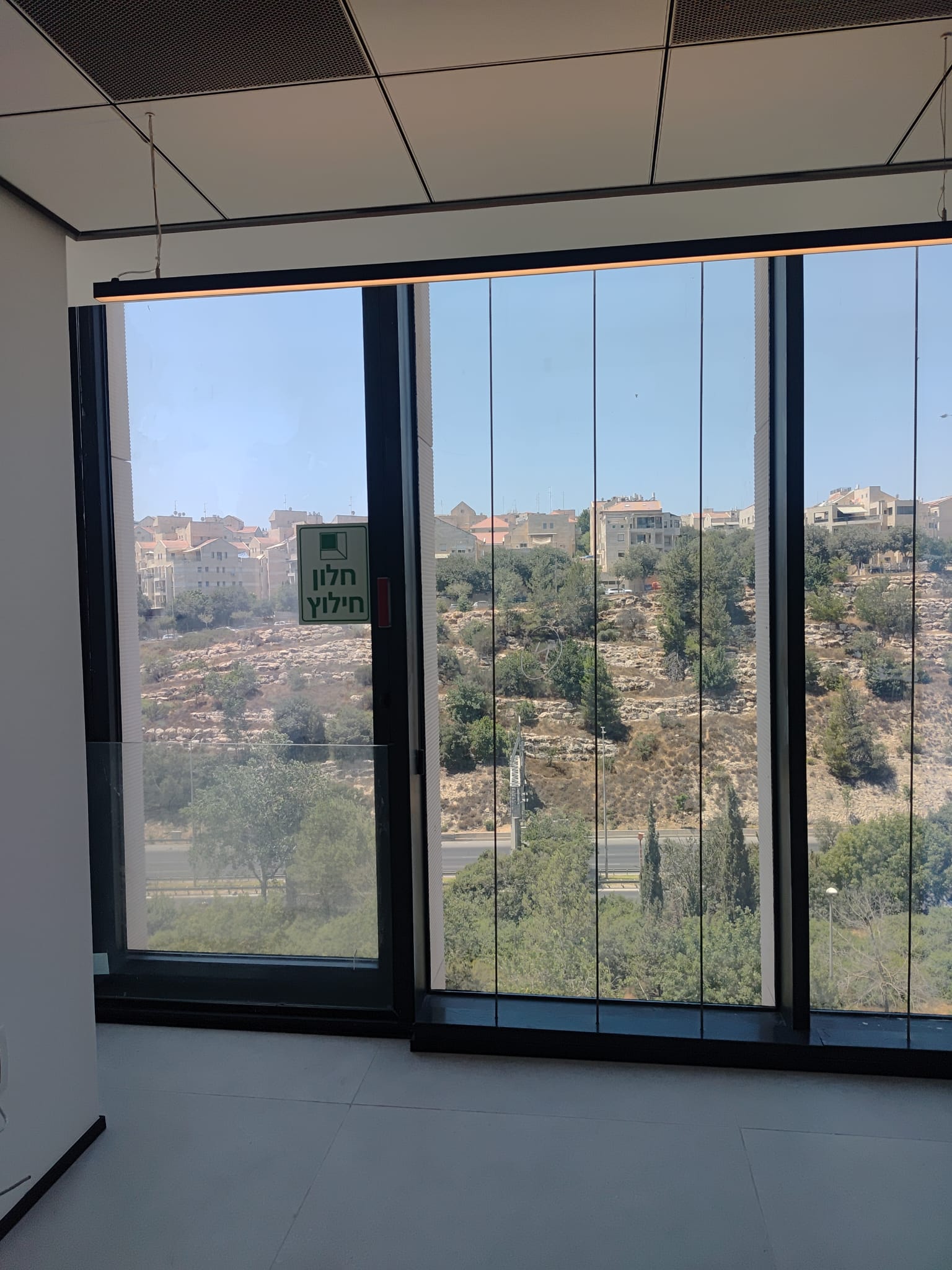

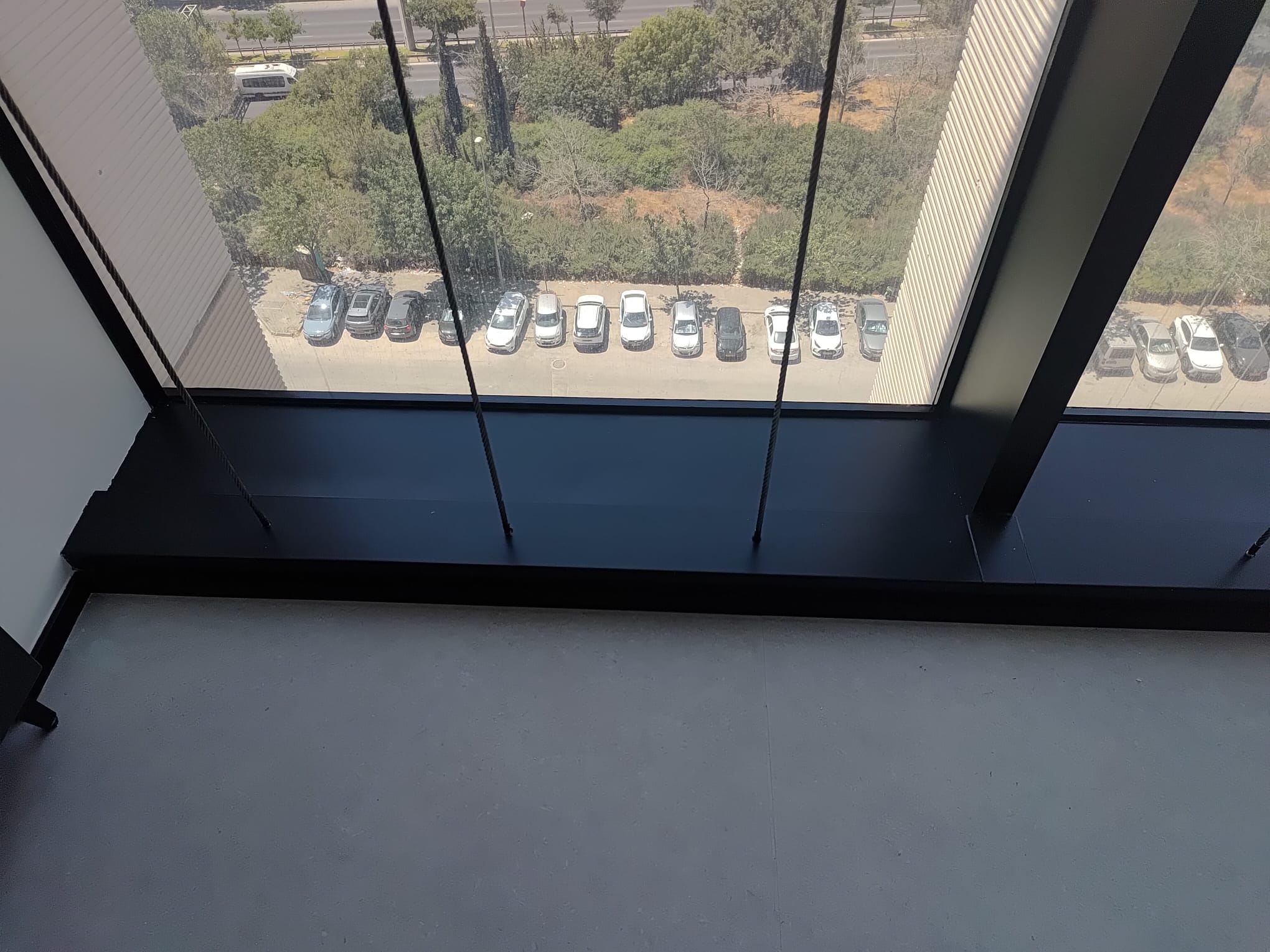

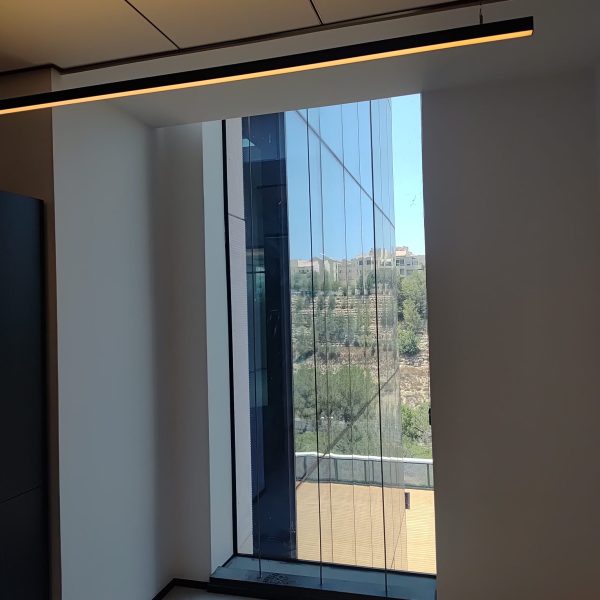

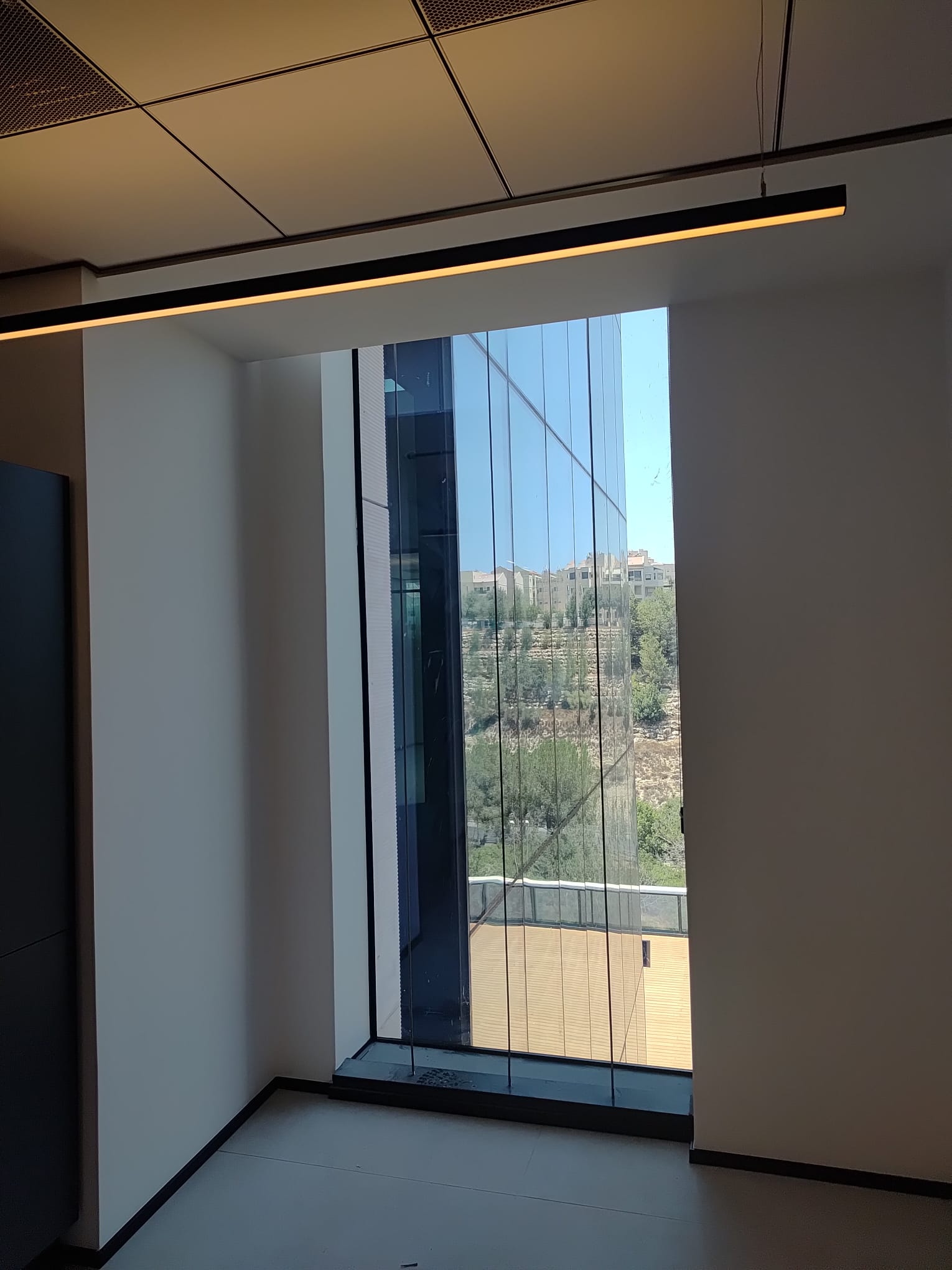

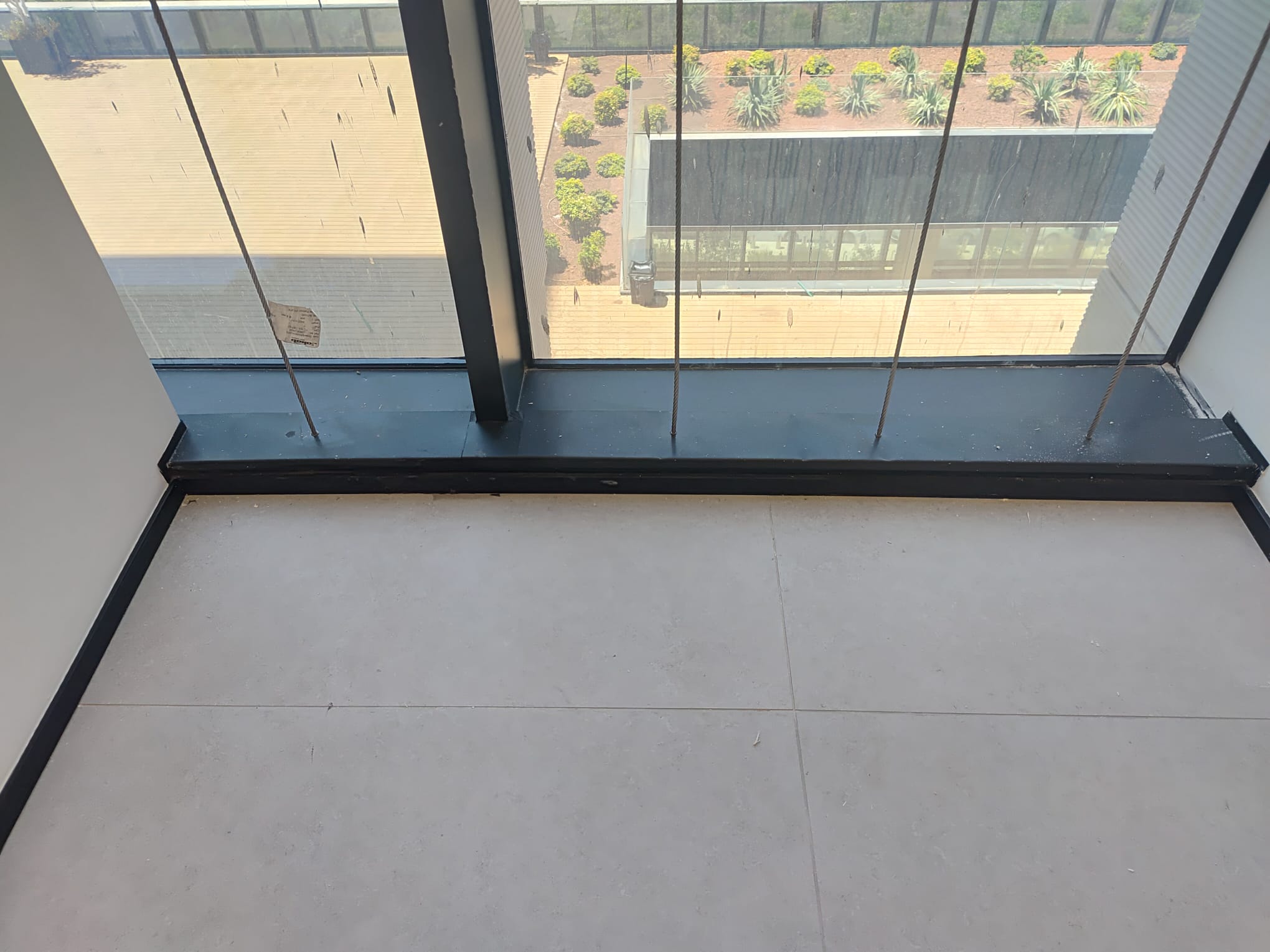

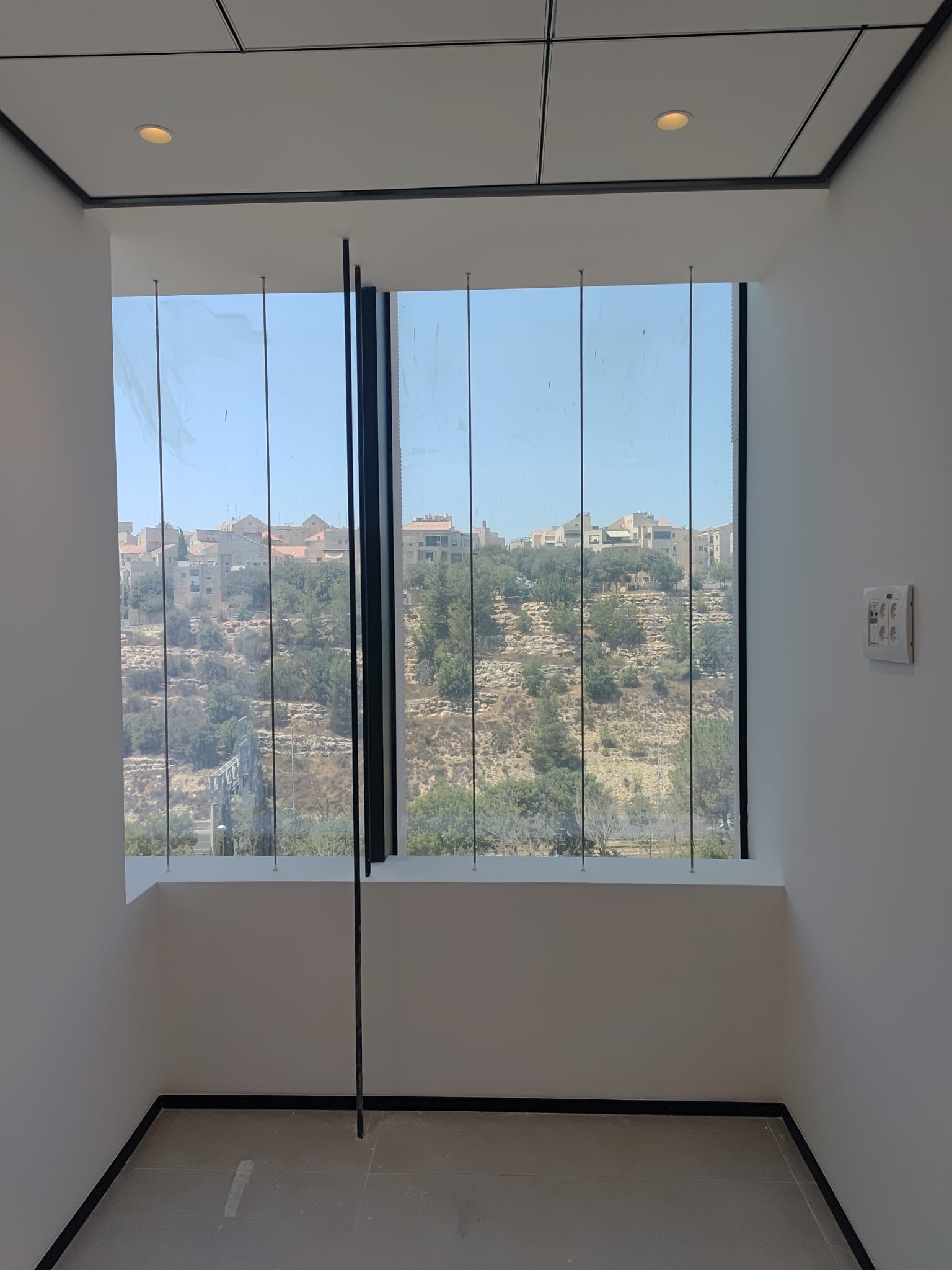

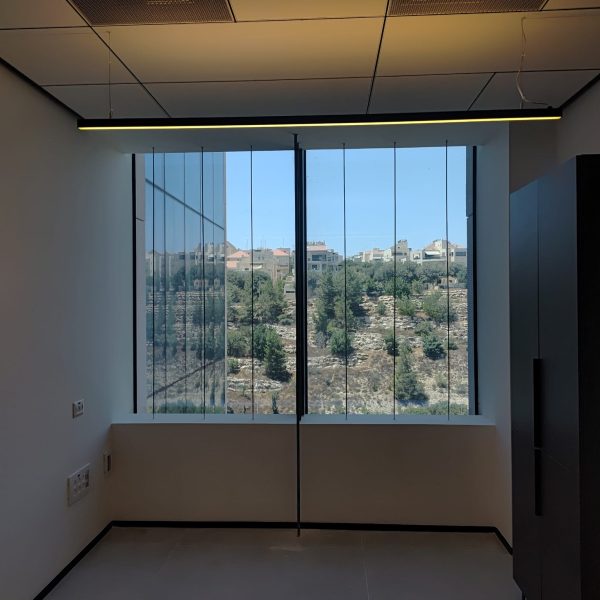

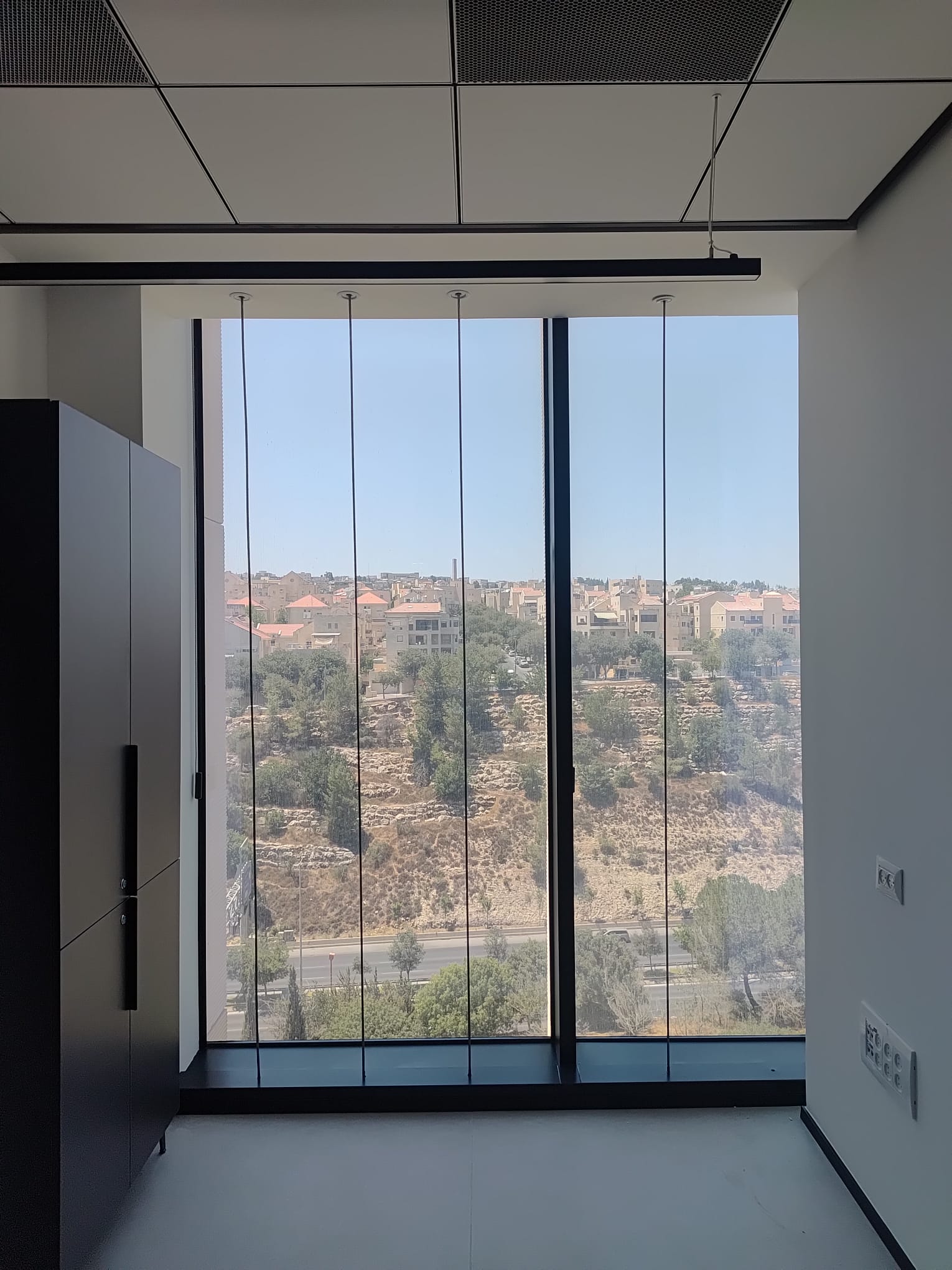

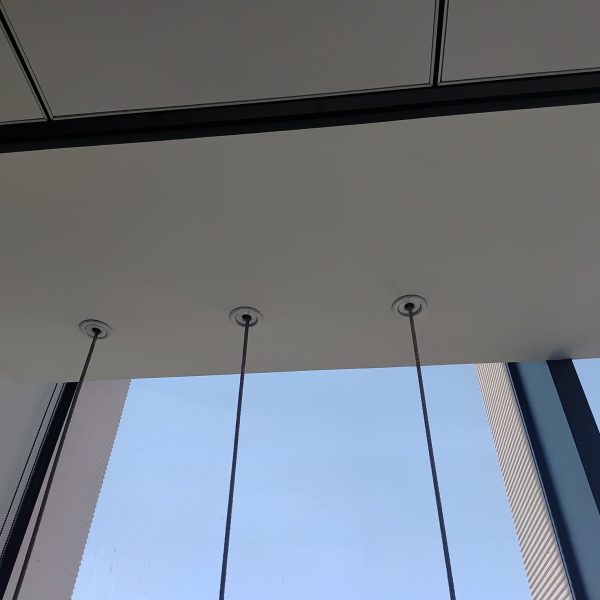

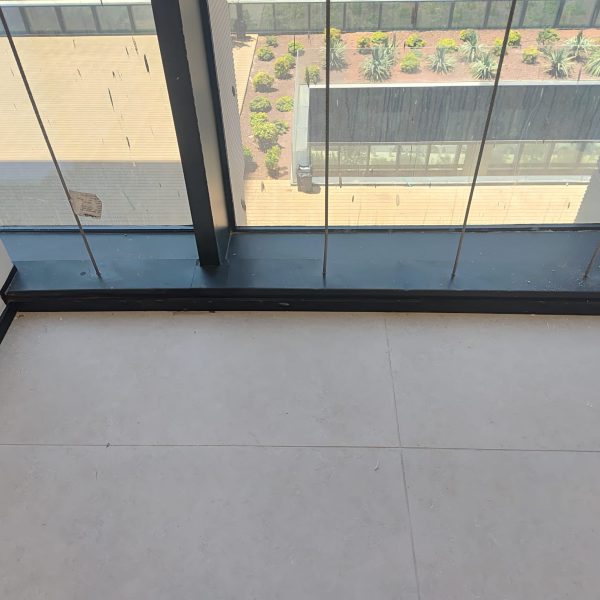

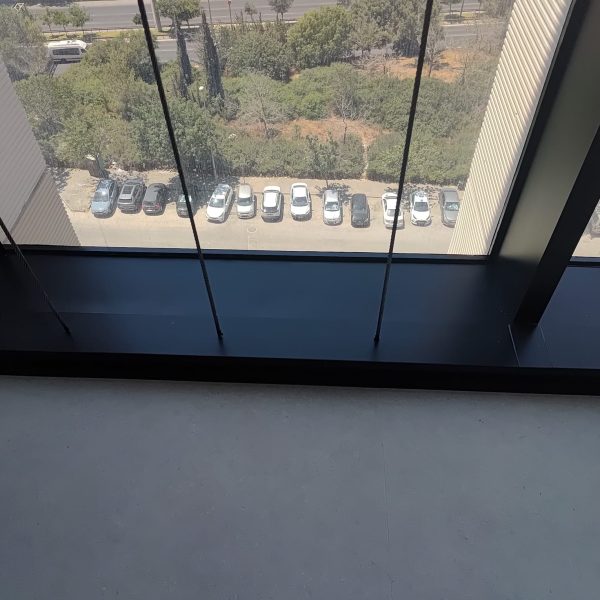

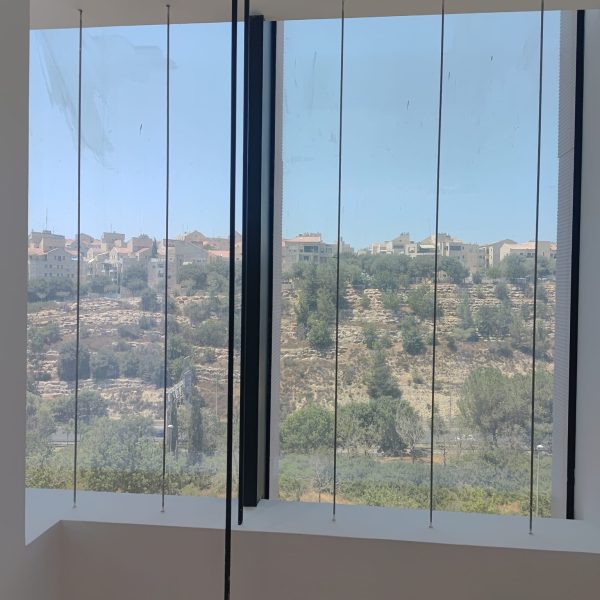

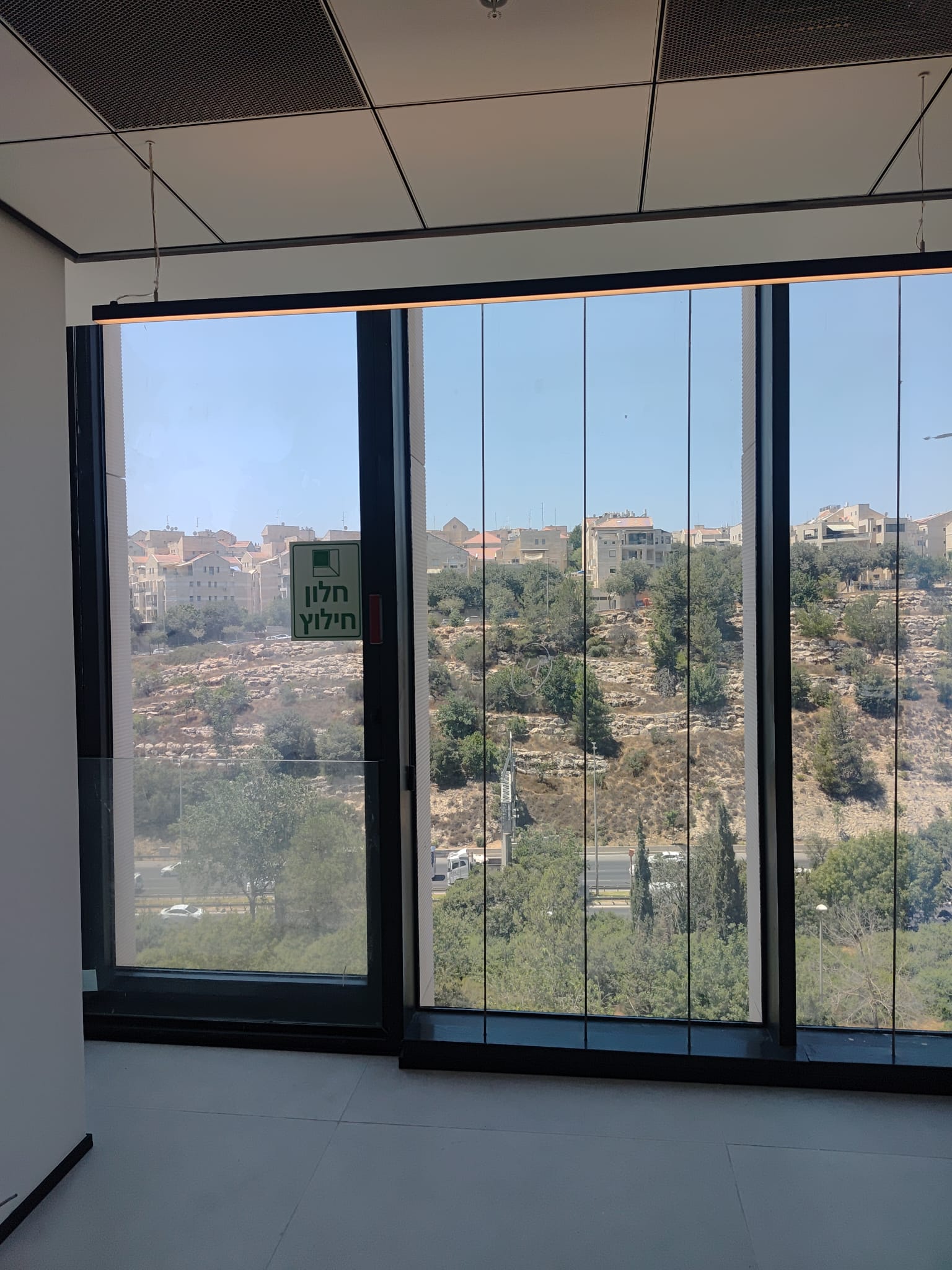

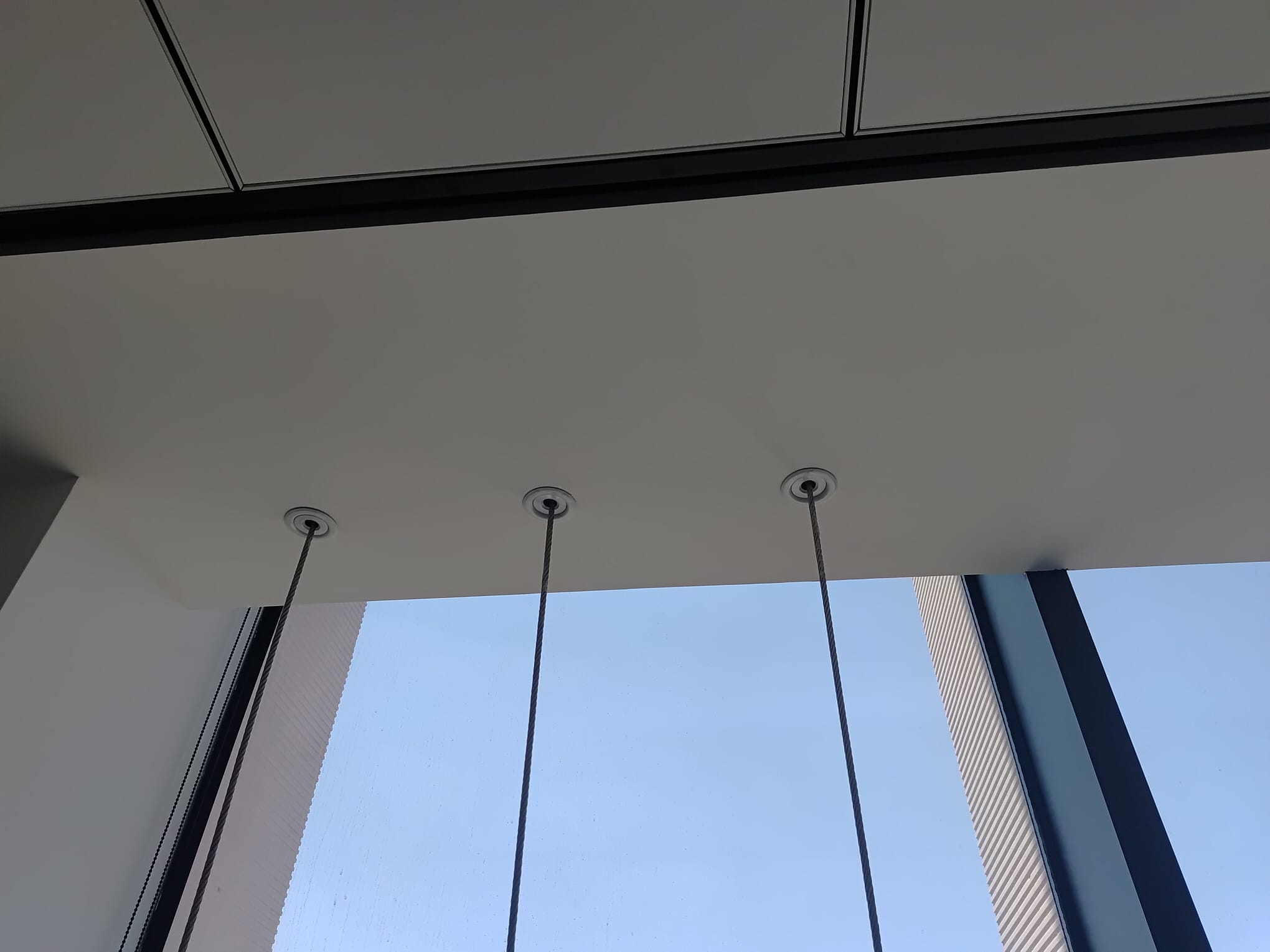

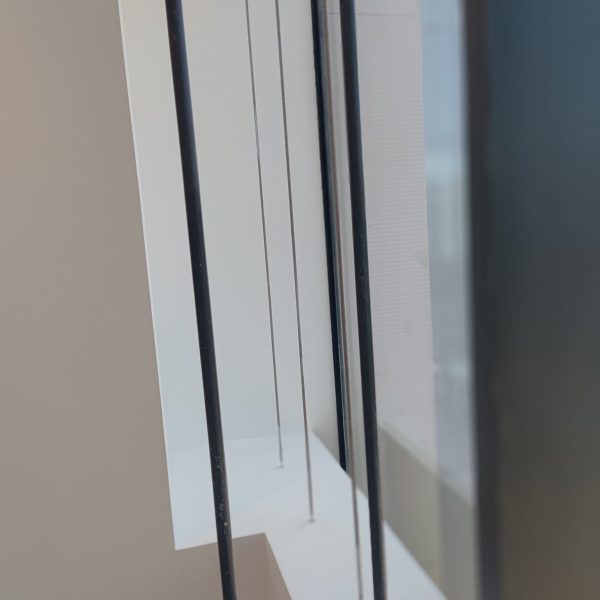

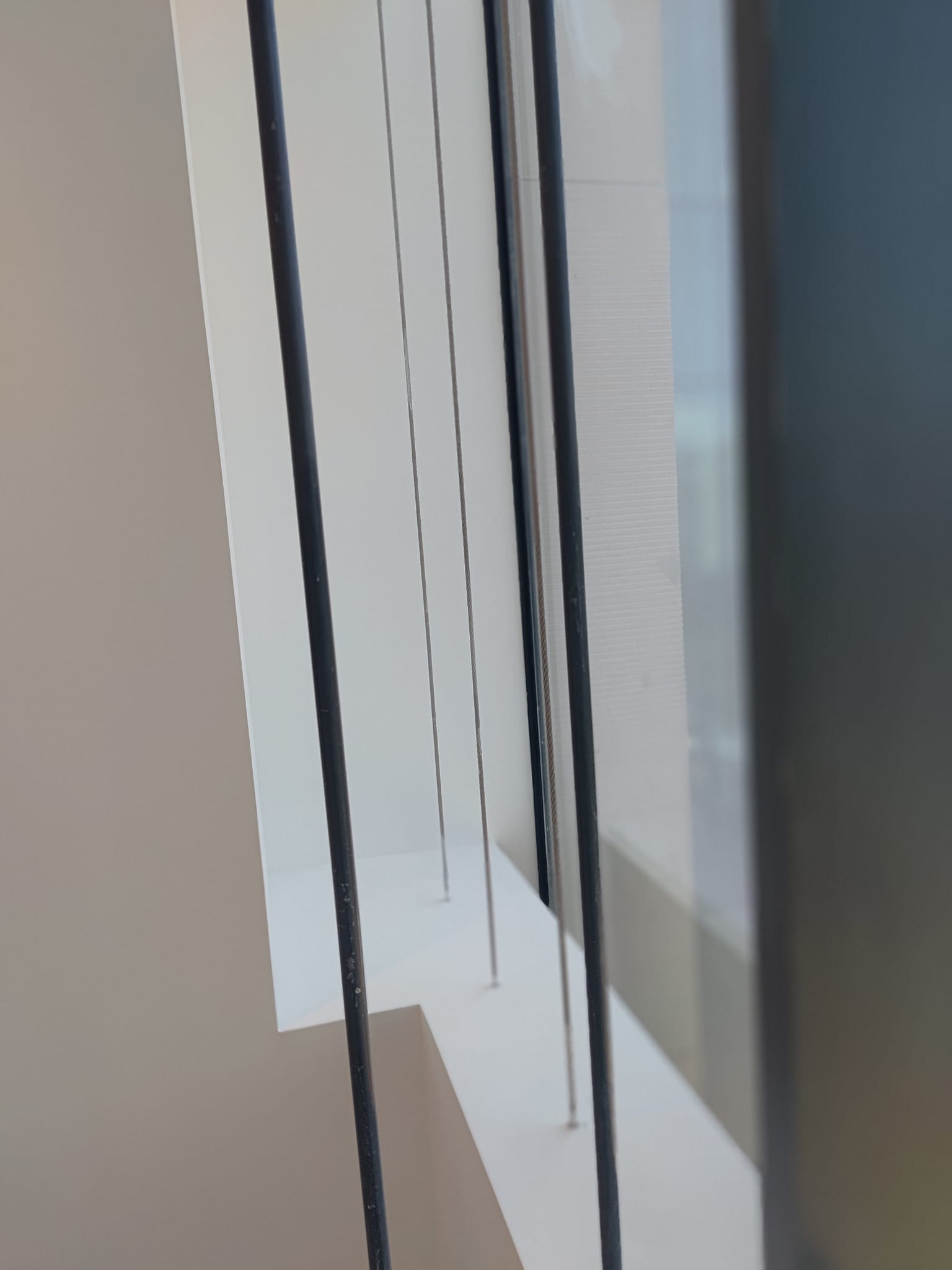

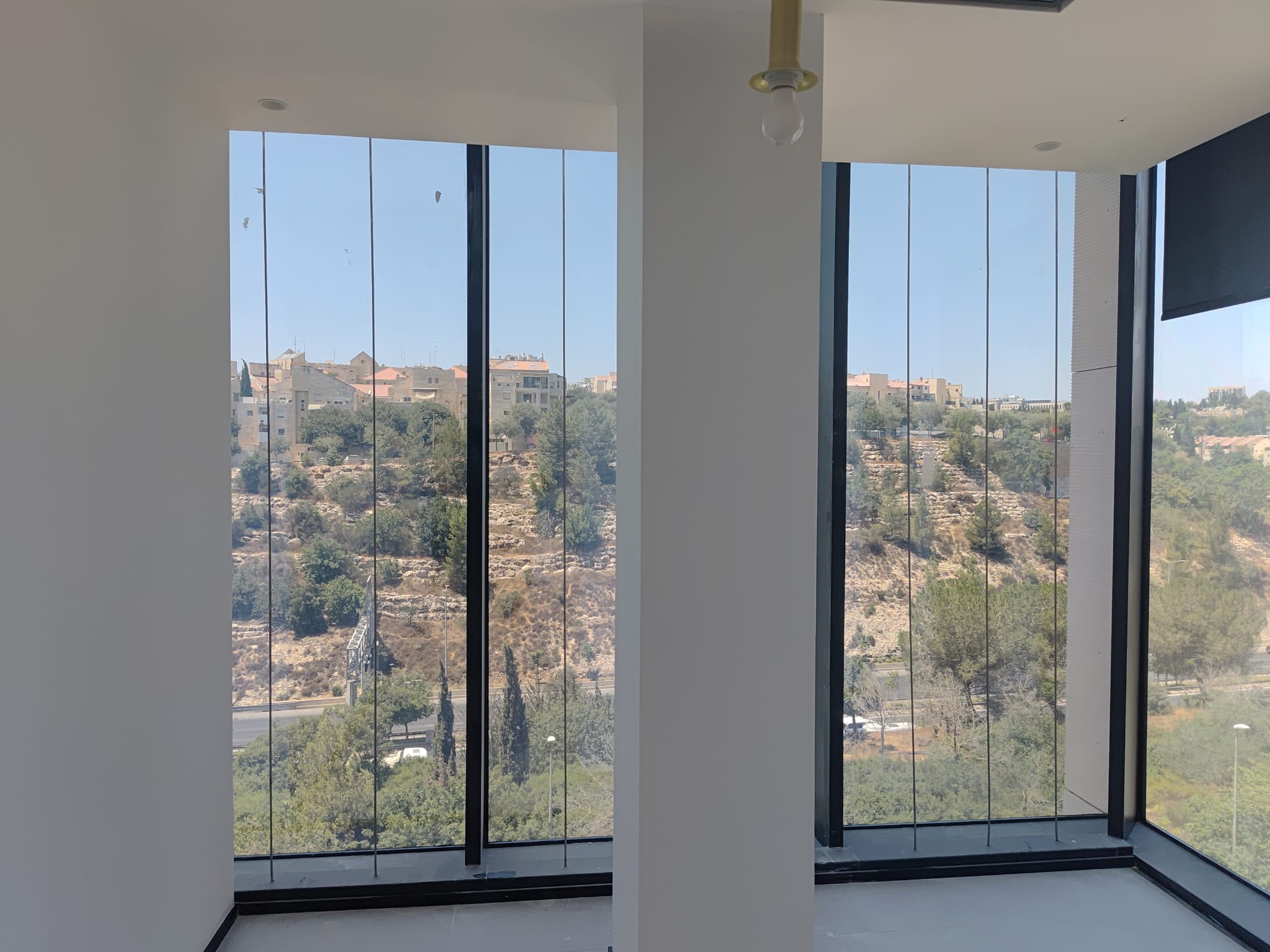

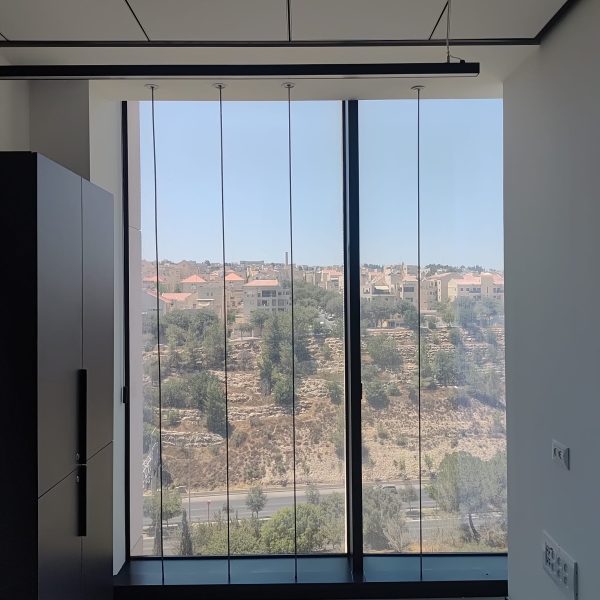

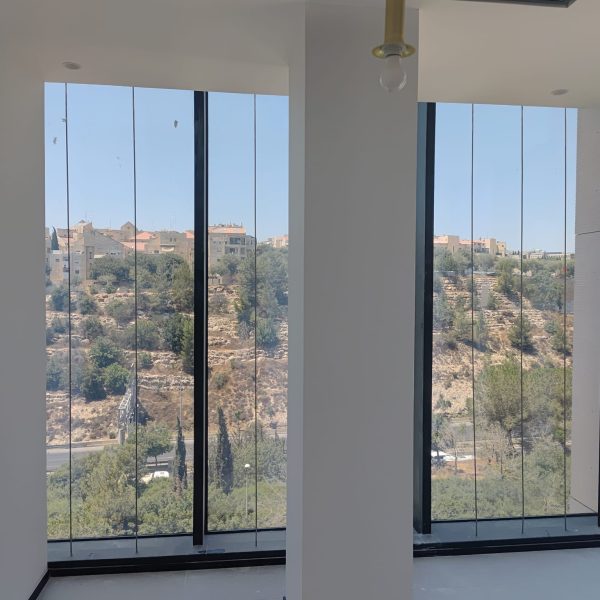

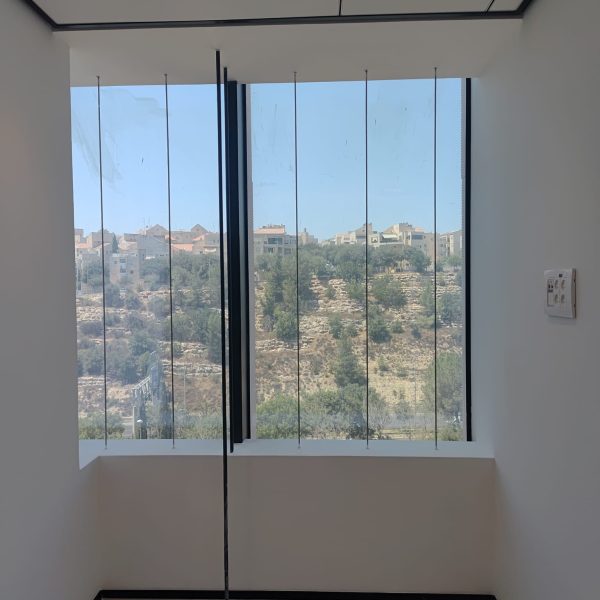

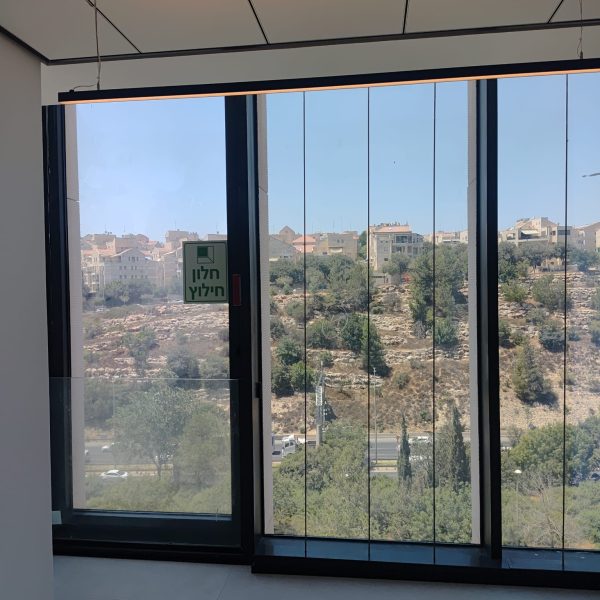

The Retrofit Cable Catch System for windows is installed a few cm behind existing windows and curtain walls in order to maintain maximum work space.

G.G Defense System's unique Retrofit Cable Catcher System for windows enables the protection of existing windows in buildings against the highest blast hazards instigated by terrorist activities.

cable catch system

Product Features

Very high protection level (live-tested). Protects against blast levels higher than 40 Psi (pressure) and 150 Psi*Msec (Impulse). GSA Test Protocol: GSA-TS01-2003 level 3A
Highly aesthetic finish, blends very well with existing curtain walls and windows. Can be installed either vertically or horizontally.
Ideal for retrofit projects and for protecting historical buildings, airports, and governmental buildings.
Easy and quick Installation that does not interfere with building’s routine activities
Cost effective – about 1/8 of the price of new blast rated windows at the same protection level.
Installed in various governmental buildings in Europe.
